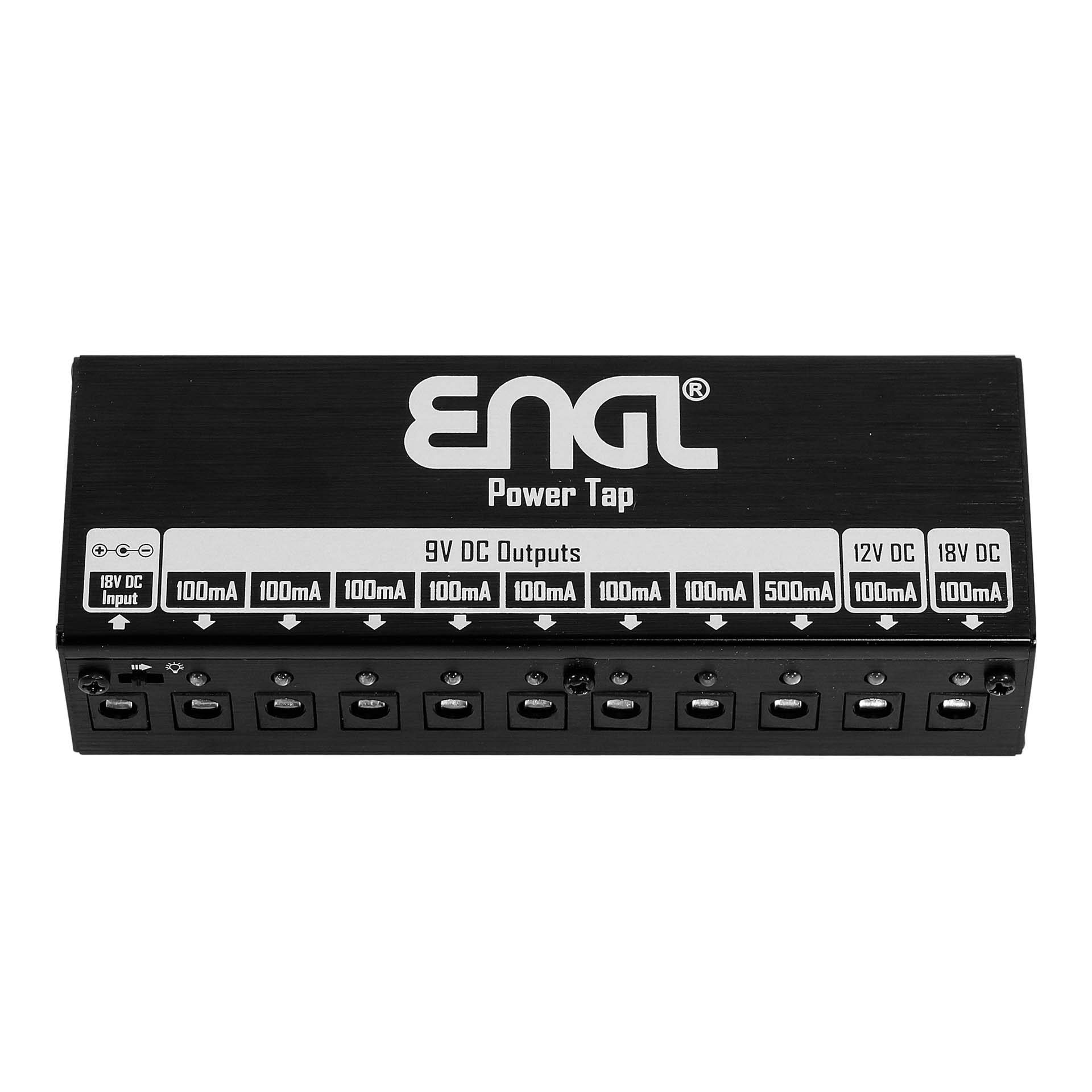

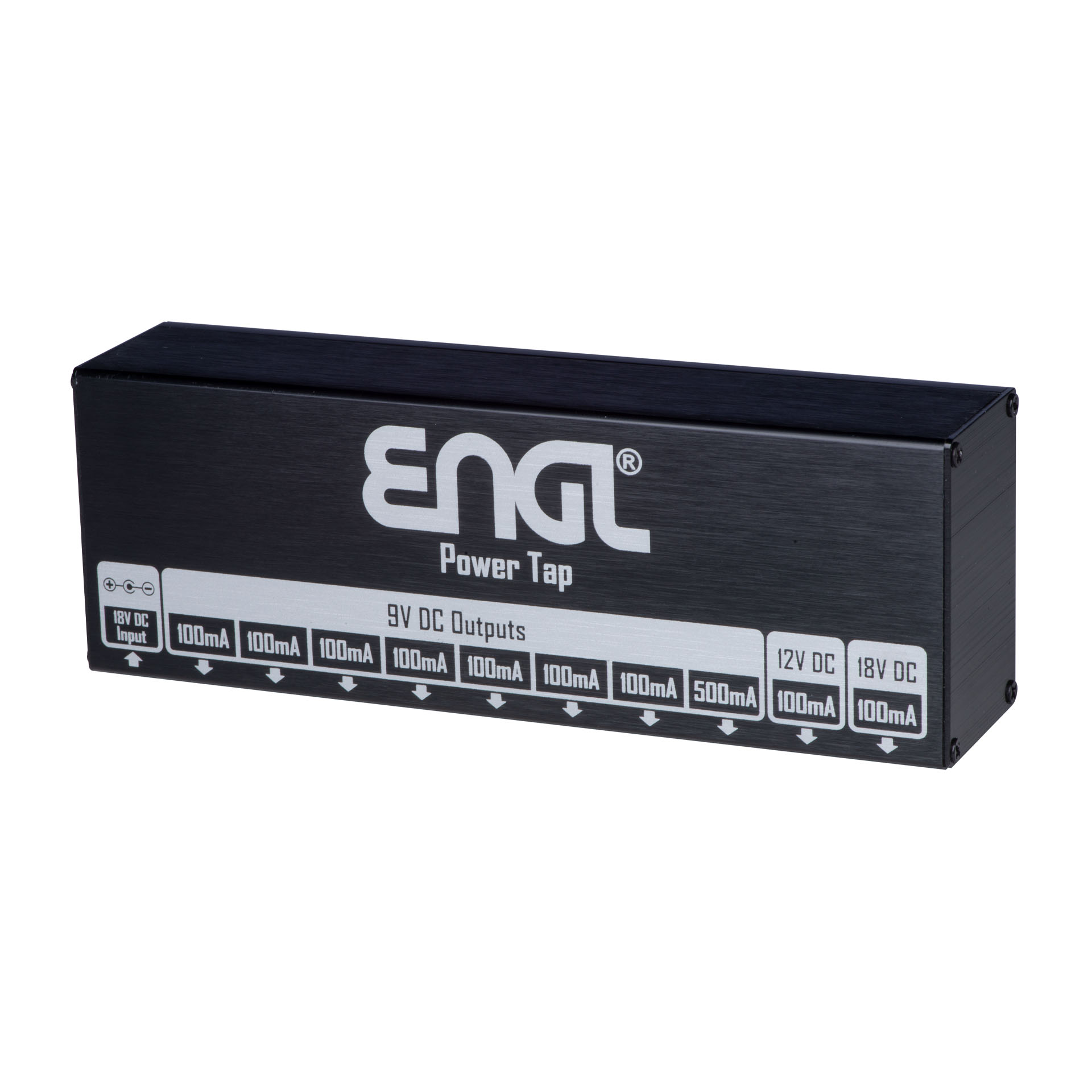

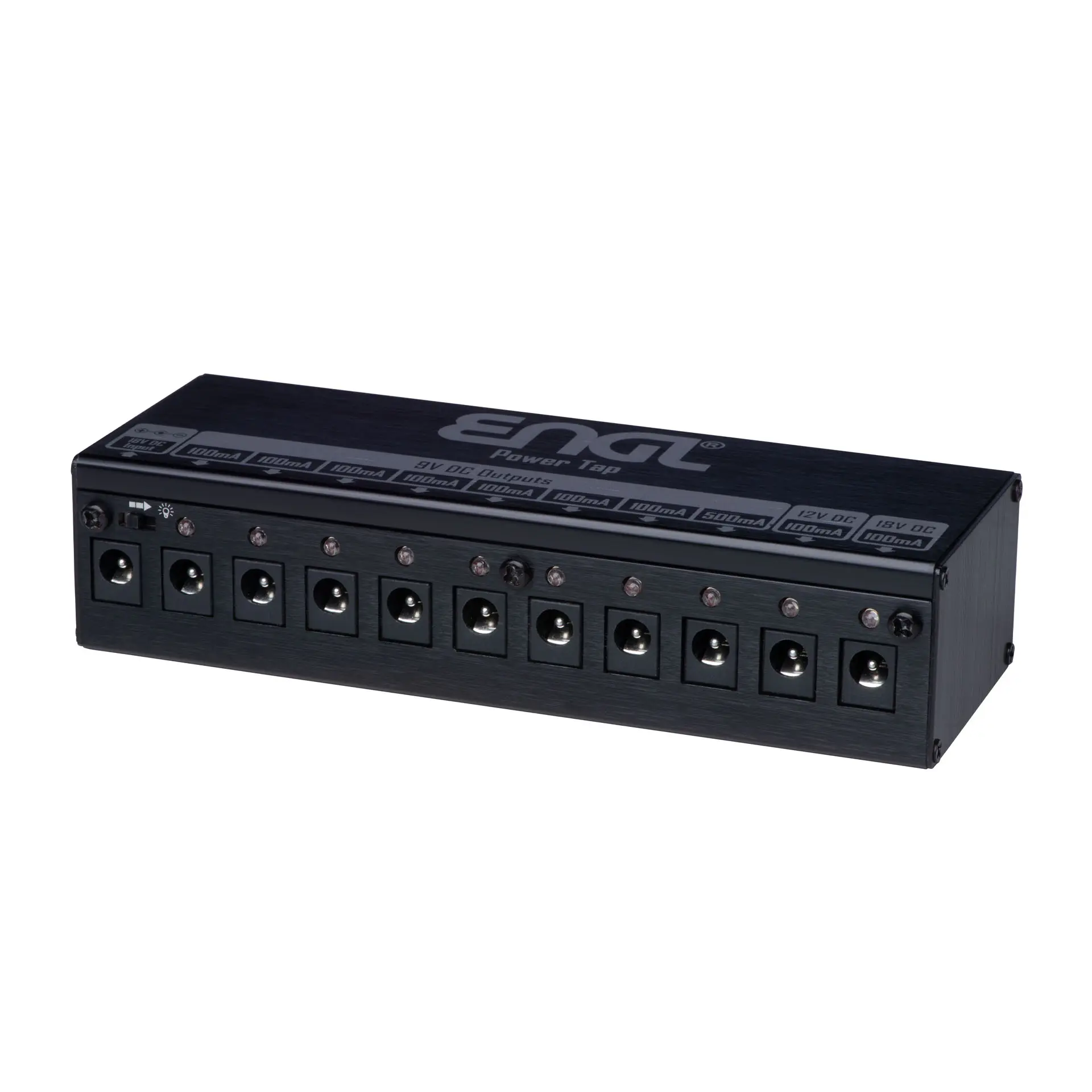

Engl Powertap

The multi-power adapter ENGL Power Tap is designed to meet the needs of today’s pedalboard users. In addition to the regular 9V DC (100mA) outputs, it also offers a 9V DC (500mA), a 12V DC (100mA) and an 18 V (100mA) output. All outputs are filtered separately and protected against short circuits.

Additional information

  • DC Input: 18V DC Power Adapter
  • 7 x 9V DC 100mA Outputs
  • 1 x 9V DC 500mA Output
  • 1 x 12V DC 100mA Output
  • 1 X 18V DC 100mA Output
  • All Outputs are separately short-circuit protected
  • Polarity: Center Negative
  • Switch (on/off) for LED Illumination

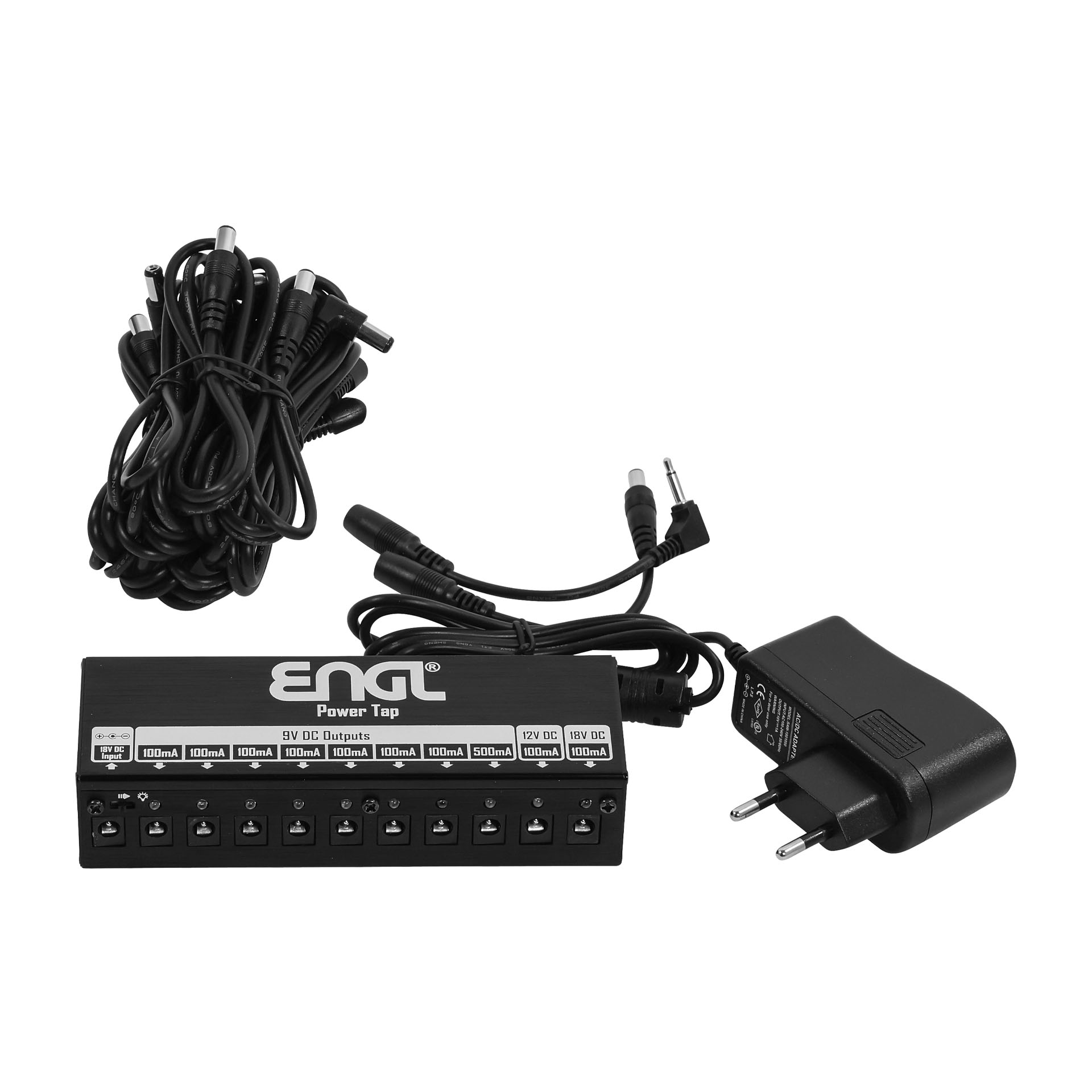

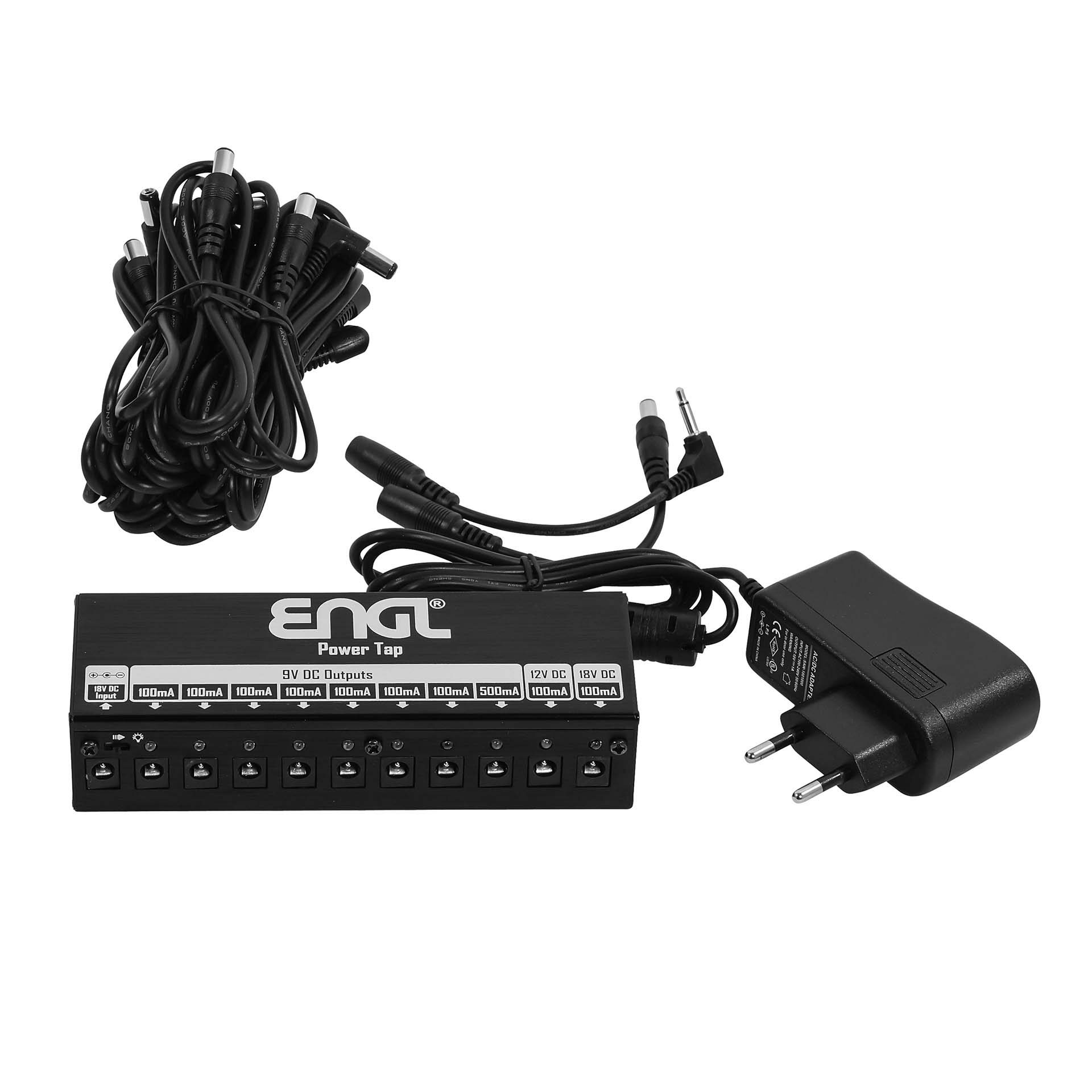

  • Engl Power Tap unit
  • Power Adaptor 18V
  • DC Connection Cables
  • DC Polarity Reversal Cable
  • Operator´s Manual

15 x 5.4 x 3.4 cm

0.6 kg
